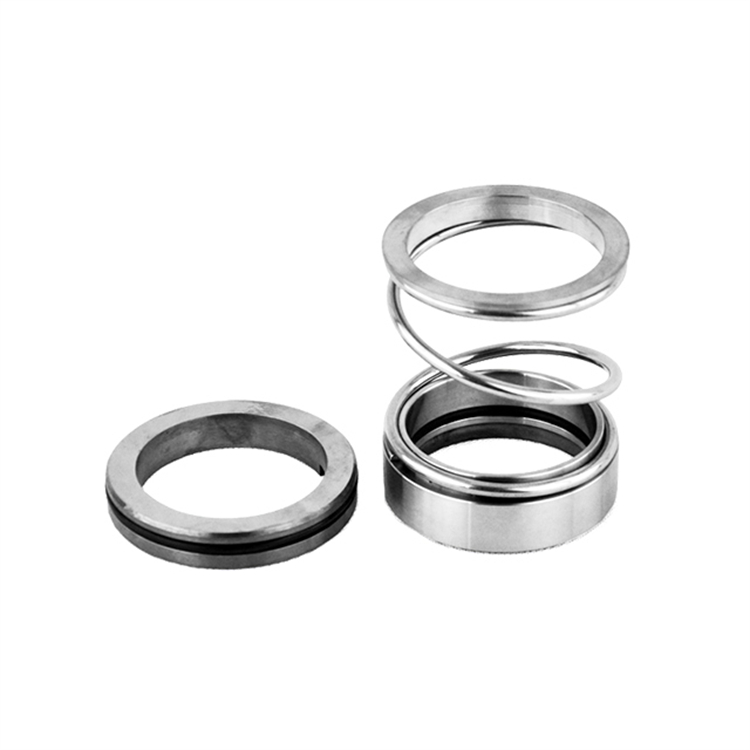

Eagle 1527(Sealol 1527)
Eagle 1527(Sealol 1527)
● Structure Description: Equivaent to Burgmann 1527, Single spring design
● Perfect replacement of Eagle 1527(Sealol 1527), component mechanical seals
Operating Limits:
● Temperature:-20---180℃
● Speed:15m/s
● Pressure:10bar
● Standard Size:18-100mm
Material:
● Seal Ring:Car、Sic、Ssic、TC
● Secondary seal:NBR，Viton，EPDM etc.
● Spring and metal parts:304，316，HAST.C

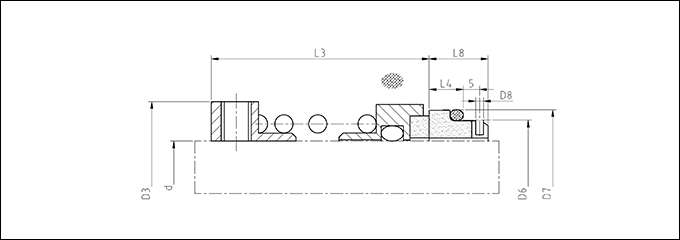

Dimensions(mm)
|
Size |
d |
D3 |
D6 |
D7 |
D8 |
L3 |
L4 |
L8 |
|
18 |
18 |
32 |
27 |
33 |
3 |
35 |
10 |
17 |
|
20 |
20 |
34 |
29 |
35 |
3 |
35.0 |
10.0 |
17.0 |
|
22 |
22 |
36 |
31 |
37 |
3 |
35.0 |
10.0 |
17.0 |
|
24 |
24 |
38 |
33 |
39 |
3 |
40.0 |
10.0 |
17.0 |
|
25 |
25 |
39 |
34 |
40 |
3 |
40.0 |
10.0 |
17.0 |
|
28 |
28 |
42 |
37 |
43 |
3 |
40.0 |
10.0 |
17.0 |
|
30 |
30 |
44 |
39 |
45 |
3 |
40.0 |
10.0 |
17.0 |
|
32 |
32 |
46 |
42 |
48 |
3 |
45.0 |
10.0 |
17.0 |
|
33 |
33 |
47 |
42 |
48 |
3 |
45.0 |
10.0 |
17.0 |
|
35 |
35 |
49 |
44 |
50 |
3 |
45.0 |
10.0 |
17.0 |
|
38 |
38 |
54 |
49 |
56 |
4 |
44.0 |
11.0 |
18.0 |
|
40 |
40 |
56 |
51 |
58 |
4 |
44.0 |
11.0 |
18.0 |
|
43 |
43 |
59 |
54 |
61 |
4 |
49.0 |
11.0 |
18.0 |
|
45 |
45 |
61 |
56 |
63 |
4 |
49.0 |
11.0 |
18.0 |
|
48 |
48 |
64 |
59 |
66 |
4 |
49.0 |
11.0 |
18.0 |
|
50 |
50 |
66 |
62 |
70 |
4 |
47.0 |
13.0 |
20.0 |
|
53 |
53 |
69 |
65 |
73 |
4 |
57.0 |
13.0 |
20.0 |
|
55 |
55 |
71 |
67 |
75 |
4 |
57.0 |
13.0 |
20.0 |
|
58 |
58 |
78 |
70 |
78 |
4 |
57.0 |
13.0 |
20.0 |
|
60 |
60 |
80 |
72 |
80 |
4 |
57.0 |
13.0 |
20.0 |
|
63 |
63 |
83 |
75 |
83 |
4 |
57.0 |
13.0 |
20.0 |
|
65 |
65 |
85 |
77 |
85 |
4 |
67.0 |
13.0 |
20.0 |
|
68 |
68 |
88 |
81 |
90 |
4 |
64.7 |
15.3 |
20.0 |
|
70 |
70 |
90 |
83 |
92 |
4 |
64.7 |
15.3 |
20.0 |
|
75 |
75 |
99 |
88 |
97 |
4 |
64.7 |
15.3 |
20.0 |
|
80 |
80 |
104 |
95 |
105 |
4 |
74.3 |
15.7 |
22.5 |
|
85 |
85 |
109 |
100 |
110 |
4 |
74.3 |
15.7 |
22.5 |
|
90 |
90 |
114 |
105 |
115 |
4 |
74.3 |
15.7 |
22.5 |
|
95 |
95 |
119 |
110 |
120 |
4 |
74.3 |
15.7 |
22.5 |
|
100 |
100 |
124 |
115 |
125 |
4 |
74.3 |
15.7 |
22.5 |
