Burgmann HJ92N Replacement

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Detailed Description

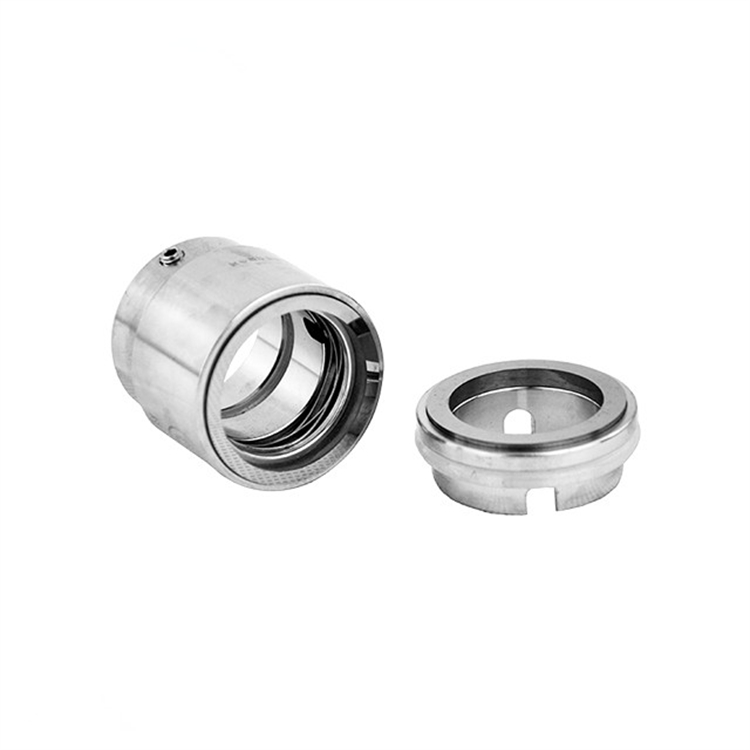

Burgmann HJ92N Replacement

● Rplacement of Burgmann HJ92N, AES M010, Roplan 201, Roten EHS mechanical seal
● Structure Description: Equivalent to Burgmann HJ92N, Wave spring design,balanced seal

Operating Limits:

● Temperature:-20---180℃
● Speed:15m/s
● Pressure:25bar
● Standard Size:18-100mm

Material:

● Seal ring:Car,Sic,Ssic,TC
● Secondary seal:NBR,Viton,EPDM etc.
● Spring and metal parts:304,316,HAST.C

Specifications

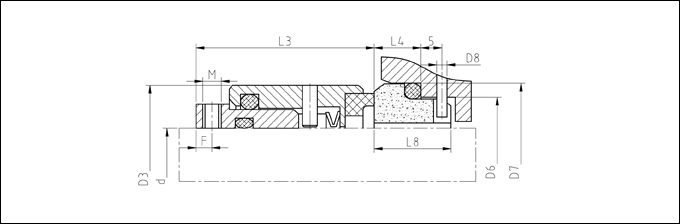

Dimensions(mm)

Size/Mettic	d	D3	D6	D7	D8	L3	L4	L8	F	M
18	18	32	27	33	3	30.5	7	15	3	M4
20	20	34	29	35	3	30.5	7	15	3	M4
22	22	36	31	37	3	30.5	7	15	3	M4
24	24	38	33	39	3	33	7	15	3.5	M5
25	25	39	34	40	3	33	7	15	3.5	M5
28	28	42	37	43	3	35.5	7	15	3.5	M5
30	30	44	39	45	3	35.5	7	15	3.5	M5
32	32	47	42	48	3	35.5	7	15	3.5	M5
33	33	47	42	48	3	35.5	7	15	3.5	M5
35	35	49	44	50	3	35.5	7	15	3.5	M5
38	38	54	49	56	4	37	8	16	4	M5
40	40	56	51	58	4	37	8	16	4	M5
43	43	59	54	61	4	37	8	16	4	M5
45	45	61	56	63	4	37	8	16	4	M5
48	48	64	59	66	4	37	8	16	4	M5
50	50	66	62	70	4	38	9.5	17	4.5	M6
53	53	69	65	73	4	38	9.5	17	4.5	M6
55	55	71	67	75	4	38	9.5	17	4.5	M6
58	58	78	70	78	4	42	10.5	18	4.5	M6
60	60	80	72	80	4	42	10.5	18	4.5	M6
63	63	83	75	83	4	42	10.5	18	4.5	M6
65	65	85	77	85	4	42	10.5	18	4.5	M6
68	68	88	81	90	4	41.5	11	18.5	4.5	M6
70	70	90	83	92	4	48.5	11.5	19	5	M6
75	75	99	88	97	4	48.5	11.5	19	5.5	M8
80	80	104	95	105	4	48.5	11.5	19	5.5	M8
85	85	109	100	110	4	48.5	11.5	19	5.5	M8
90	90	114	105	115	4	52	13	20.5	5.5	M8
95	95	119	110	120	4	52	13	20.5	5.5	M8
100	100	124	115	125	4	52	13	20.5	5.5	M8
