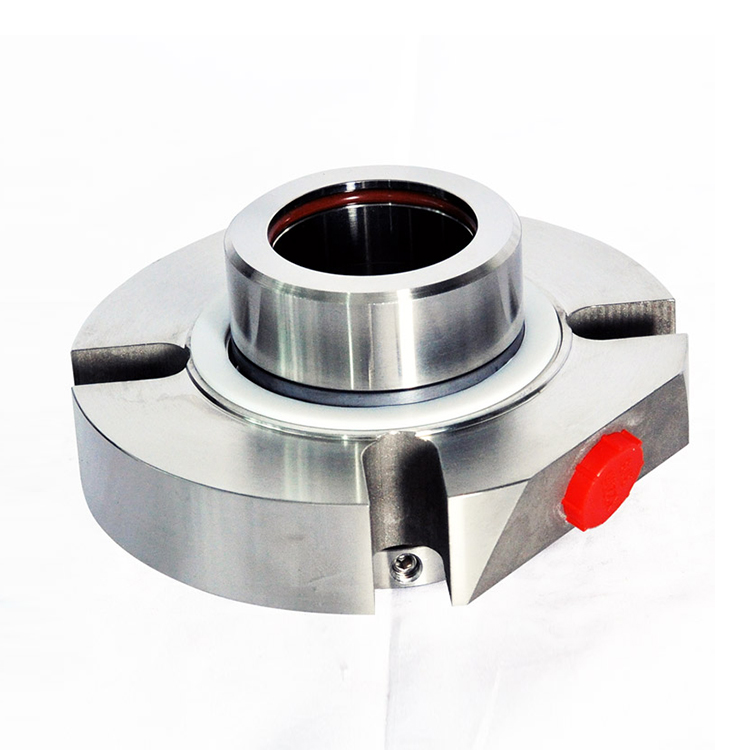

● Cartex-SN: Replacement of Burgmann Cartex Single seal mechanical seal
● Structure Description: Equivalent to Burgmann Cartex-SN, Single cartridge mechanical seal, Multiple spring,balanced,most popular type
Operating Limits
● Temperature:-50---204℃
● Speed:23m/s
● Pressure:20bar
● Standard Size:25-100mm or 1″-4.00″
Material:
● Seal Ring:Car,Sic,Ssic,TC
● Secondary seal:NBR，Viton，EPDM，Kalrez
● Spring and metal parts:304,316,HAST.C

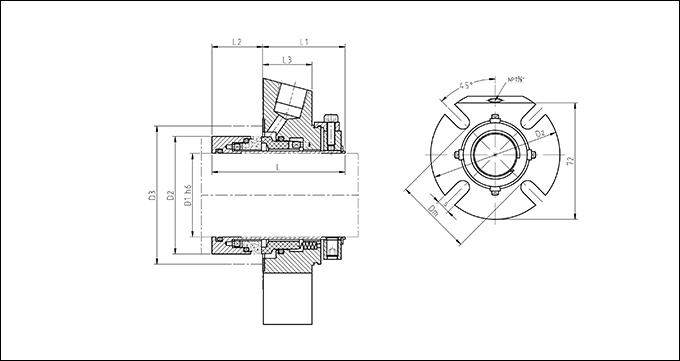

Cartex-SN Dimensions(mm)
|
D1 |
D2 |
D3min |
D3max |
L |
L12 |
L2 |
L3 |
Dm |
Dz |
S |
|
25 |
43.0 |
44.0 |
51.5 |
67.0 |
42.4 |
24.6 |
25.4 |
62 |
105 |
13.2 |
|
28 |
46.0 |
47.0 |
52.0 |
67.0 |
42.4 |
24.6 |
25.4 |
62 |
105 |
13.2 |
|
30 |
48.0 |
49.0 |
56.0 |
67.0 |
42.4 |
24.6 |
25.4 |
65 |
105 |
13.2 |
|
32 |
49.8 |
51.0 |
57.0 |
67.0 |
42.4 |
24.6 |
25.4 |
67 |
108 |
13.2 |
|
33 |
49.8 |
51.0 |
57.0 |
67.0 |
42.4 |
24.6 |
25.4 |
67 |
108 |
13.2 |
|
35 |
53.0 |
54.0 |
61.5 |
67.0 |
42.4 |
24.6 |
25.4 |
70 |
113 |
13.2 |
|
38 |
56.0 |
57.0 |
66.0 |
67.0 |
42.4 |
24.6 |
25.4 |
75 |
123 |
13.2 |
|
40 |
58.0 |
59.0 |
68.0 |
67.0 |
42.4 |
24.6 |
25.4 |
75 |
123 |
14.2 |
|
42 |
60.5 |
61.5 |
69.5 |
67.0 |
42.4 |
24.6 |
25.4 |
80 |
133 |
14.2 |
|
43 |
60.5 |
61.5 |
70.5 |
67.0 |
42.4 |
24.6 |
25.4 |
80 |
133 |
14.2 |
|
45 |
62.5 |
64.0 |
73.0 |
67.0 |
42.4 |
24.6 |
25.4 |
81 |
138 |
14.2 |
|
48 |
65.6 |
67.0 |
75.0 |
67.0 |
42.4 |
24.6 |
25.4 |
84 |
138 |
14.2 |
|
50 |
68.0 |
69.0 |
78.0 |
67.0 |
42.4 |
24.6 |
25.4 |
87 |
148 |
14.2 |
|
53 |
72.0 |
73.0 |
87.0 |
67.0 |
42.4 |
24.6 |
25.4 |
97 |
148 |
18.0 |
|
55 |
73.0 |
74.0 |
83.0 |
67.0 |
42.4 |
24.6 |
25.4 |
90 |
148 |
18.0 |
|
60 |
78.0 |
79.0 |
91.0 |
67.0 |
42.4 |
24.6 |
25.4 |
102 |
157 |
18.0 |
|
65 |
84.8 |
85.7 |
98.5 |
67.0 |
42.4 |
24.6 |
25.4 |
109 |
163 |
18.0 |
|
70 |
93.0 |
95.0 |
108.0 |
67.0 |
42.4 |
24.6 |
25.4 |
118 |
178 |
18.0 |
|
75 |
100.0 |
101.6 |
118.0 |
84.0 |
57.4 |
26.6 |
28.0 |
129 |
190 |
18.0 |
|
80 |
106.4 |
108.0 |
124.0 |
84.0 |
57.4 |
26.6 |
28.0 |
135 |
195 |
18.0 |
|
85 |
109.5 |
111.1 |
128.0 |
84.0 |
57.4 |
26.6 |
28.0 |
139 |
198 |
22.0 |
|
90 |
115.9 |
117.5 |
135.0 |
84.0 |
57.4 |
26.6 |
28.0 |
145 |
205 |
22.0 |
|
95 |
119.1 |
120.7 |
138.0 |
84.0 |
57.4 |
26.6 |
28.0 |
148 |
208 |
22.0 |
|
100 |
125.4 |
127.0 |
144.0 |
84.0 |
57.4 |
26.6 |
28.0 |
154 |
218 |
22.0 |
